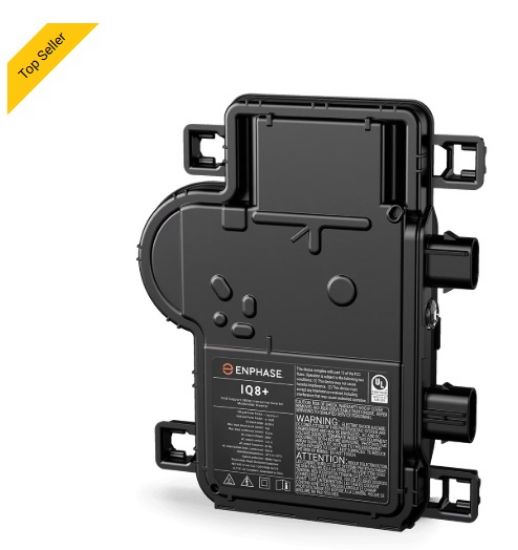

Enphase IQ8 IQ8PLUS-72-2-US 300W Microinverter

Item Weight: 2.38 lb
Dimensions (LxWxH): 1.2 x 6.9 x 8.3 inches

The new IQ8PLUS-72-M-US Microinverters are the industry’s first microgrid-forming, software defined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.

• Lightweight and compact with plug-n-play connectors
• Power Line Communication (PLC) between components
• Faster installation with simple two-wire cabling
• Produce power even when the grid is down
• More than one million cumulative hours of testing
• Class II double-insulated enclosure
• Optimized for the latest high-powered PV modules
• Complies with the latest advanced grid support
• Remote automatic updates for the latest grid requirements
• Configurable to support a wide range of grid profiles
• Meets CA Rule 21 (UL 1741-SA) requirements
